Description
The first wireless pen-style tattoo machine from power supply manufacturer Musotoku. This professional model, featuring a Faulhaber motor and unique heatsink structure, is suitable for everything from lining to coloring.

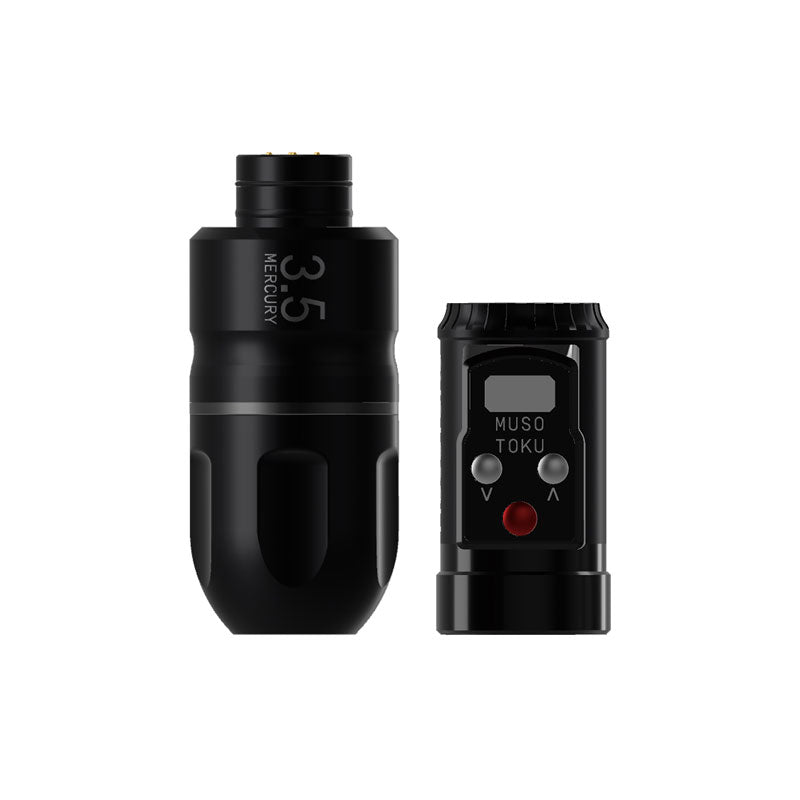

The Mercury M-1 is the first wireless tattoo machine developed by Musotoku, a brand known for its power supplies. It is equipped with a German-made Faulhaber 4.5W brushed motor and operates on a 100% straight direct drive system. Its unique heatsink structure is designed to manage the machine's heat during prolonged continuous use. Three fixed stroke options are available: 3.0mm, 3.5mm, and 4.3mm. This product is the 3.5mm stroke model.
Regarding power specifications, in addition to the dedicated ROVER R-1 battery, it also supports Critical and Bishop magnetic batteries. Wired connection is also possible using the included RCA adapter. The grip diameter is 36mm, and it weighs approximately 204g with the battery, with a total length of 131mm, designed for balanced handling during long sessions. It is made of aircraft-grade aluminum with a black finish.
Product Features
- Equipped with Faulhaber 4.5W Brushed Motor: Features a German-made Faulhaber motor operating on a 100% straight direct drive system. It can be used within an operating voltage of 5-12V and a frequency range of 60-146Hz.
- Unique Heatsink Structure: Incorporates a built-in structure to dissipate heat during prolonged operation. Designed for use in sessions with frequent continuous operation.
- Wireless Design with Multiple Power Options: Supports the dedicated ROVER R-1 battery (up to 15 hours of operation) as well as Critical and Bishop magnetic batteries. Wired connection via the included RCA adapter is also an option.
- Available in Three Fixed Strokes: Three models are available (3.0mm, 3.5mm, 4.3mm), allowing you to choose the model best suited for your work. This product is the 3.5mm stroke.
- Aircraft-Grade Aluminum Body: With a grip diameter of 36mm and weighing approximately 204g with the battery, it is designed for balanced handling during long tattooing sessions.
Product Details
Key specifications are as follows:
- Brand: Musotoku
- Product Name: Mercury M-1
- Type: Wireless-compatible pen-style tattoo machine (wired RCA connection also possible)
- Stroke: 3.5mm (fixed) / Also available in 3.0mm and 4.3mm models
- Operating Voltage / Frequency: 5-12V / 60-146Hz
- Motor: Faulhaber 4.5W brushed motor, 100% straight direct drive
- Size / Weight: Total length 131mm (including battery) / Approx. 204g (including battery)
- Grip Diameter: 36mm
- Material: Aircraft-grade aluminum (black finish)
- Compatible Power Sources: ROVER R-1 battery (up to 15 hours of operation), Critical / Bishop magnetic batteries, wired RCA connection
- Accessories: RCA connection adapter, spare O-rings, lubricating oil (20ml), user manual
Recommended For
Ideal for artists who plan to operate wirelessly and want a wide range of power options.
- Those who already use Critical or Bishop batteries and are looking for a compatible machine.
- Those who want to build their equipment around a single machine capable of lining, shading, and coloring.
- Those who prioritize heat management and weight balance for long sessions when choosing a machine.
- Those considering an equipment setup that supports both wired and wireless operation.
Important Notes
This product is a fixed 3.5mm stroke model. The stroke cannot be changed. 3.0mm and 4.3mm stroke models are available separately. The ROVER R-1 battery is sold separately. For compatibility with Critical and Bishop batteries, please check the magnetic connection specifications of each battery. Please refer to the included user manual before use. Product specifications, packaging, and accessories may change depending on the arrival period.
