Description
This is a tattoo power unit compatible with the Cheyenne SOL series and other manufacturers' machines via an adapter cable.

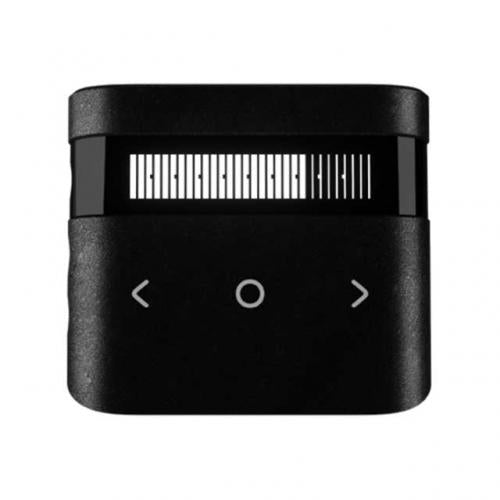

The Cheyenne PU IV is a power unit designed to be paired with the Cheyenne SOL family. It uses a 3.5mm JACK cord (included with Cheyenne machines) for machine connection, and the footswitch supports RCA connection. By using a separately sold adapter cable, it can also be connected to tattoo machines from other manufacturers.
The voltage can be adjusted within the range of 4.7 to 12.5V DC, and can be switched between indicator display and numerical voltage display. There are 30 adjustment increments, with each increment representing approximately 0.26V. The back and bottom surfaces are magnetic and it also features a self-standing kickstand, allowing for stable use when placed on a workstation or tray. It also includes a mode to enable/disable the foot pedal.
Product Features
- Designed for Cheyenne SOL Family: Can be connected directly using the 3.5mm JACK cord included with Cheyenne machines.
- Connection to Other Manufacturers' Machines: By using a separately sold adapter cable, it can also be used with non-Cheyenne machines.
- Two Types of Voltage Display: You can switch between indicator display and numerical voltage display, allowing you to choose the confirmation method that suits your working style.
- Magnetic + Self-standing Kickstand: The magnets on the back and bottom, along with the self-standing kickstand, make it easy to secure in a stable position during tattooing.
- Foot Pedal Mode Switching: You can enable or disable the footswitch, allowing for operation according to the situation.
Product Details
Key specifications are as follows:
- Brand: Cheyenne
- Product Name: PU IV (Power Unit)
- Type: Tattoo Power Unit
- Voltage: 4.7–12.5V DC (approx. 0.26V per increment, 30 increments)
- Maximum Output: 10W
- Machine Connection: 3.5mm JACK (uses cord included with Cheyenne machine)
- Footswitch Connection: RCA
- Size (Height × Width × Depth): 87 × 76 × 28mm
- Weight: 150g
- Manufacturer's Warranty: 1 year
Recommended for
This is ideal for those who use machines from the Cheyenne SOL series and wish to have a compatible power unit.
- Those who want to use it in combination with Cheyenne SOL family machines.
- Those who want to operate both Cheyenne and other manufacturers' machines with a single power unit.
- Those who want to keep their workstation setup compact.
- Those who want to switch between using and not using the foot pedal depending on the situation.
Important Notes
An adapter cable (sold separately) is required to connect to other manufacturers' machines. Please note that compatibility with all other manufacturers' machines is not guaranteed, so please check before connecting. Before use, please refer to the usage and storage instructions provided by the manufacturer or on the product packaging. Product specifications, packaging, and accessories may change depending on the production batch.
